Catalogue item

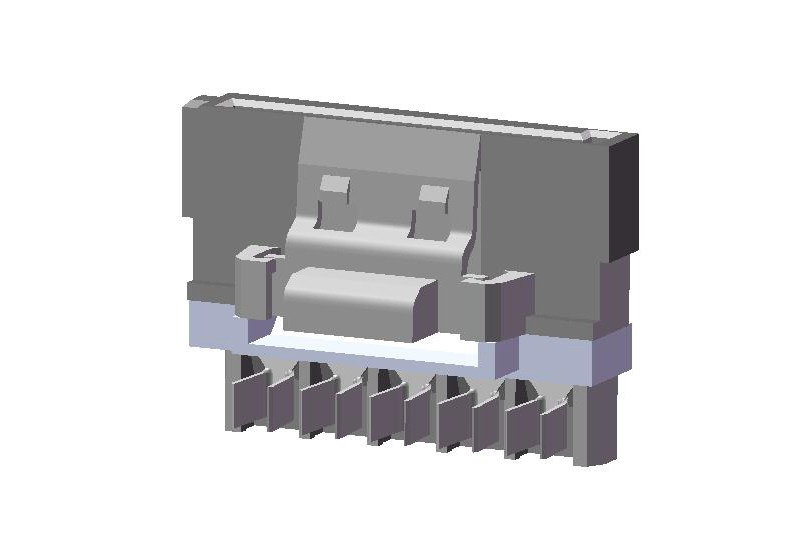

CI94 Plastic Latch Series 1.27mm(.050) Serial ATA Power Receptacle Connector Molding Type
• Rated Current and Voltage : 1.5A 15V DC (r.m.s) • Dielectric Withstanding Voltage : 500V AC for one minute • Contact Resistance : 30mΩ • Insulation Resistance : 1000MΩ • Operating Temperature : -40℃~105℃ • RoHS Compliant • Halogen-Free
Generally high availability — ask for current lead time
Catalog-page
<a href='/media/cvilux/cdi_pdf_1348.pdf' style='color: rgb(255,0,0)' target='_blank'>Download P151 CI94-3</a>
Circuits
AWG#18-AWG#22 AWG
Product Drawings
<a href='/media/cvilux/cdi_pdf_1033.pdf' style='color: rgb(255,0,0)' target='_blank'>Download CI9427S</a>
GWIT
0
Halogen Free
0
Lead Free
0
Additional information
| Catalog-page | Download P151 CI94-3 |
| Circuits | AWG#18-AWG#22 AWG |
| Product Drawings | Download CI9427S |
| GWIT | 0 |
| Halogen Free | 0 |
| Lead Free | 0 |
| Location | CED |
| Plating Code | A = Selective 1.2u Gold Flash Over 50u Nickel; B = Selective 15u Gold Over 50u Nickel; C = Selective 30u Gold Over 50u Nickel Download GENERAL PLATING-2 PDF |
| RoHS | 0 |
| Specification | Download SPCI079 |
| Test Report | Download CI94MOLDING IA Download 包裝規範 |
| Tin-lead | 0 |
| TUV | 0 |
| UL | 0 |
Description
N/A
