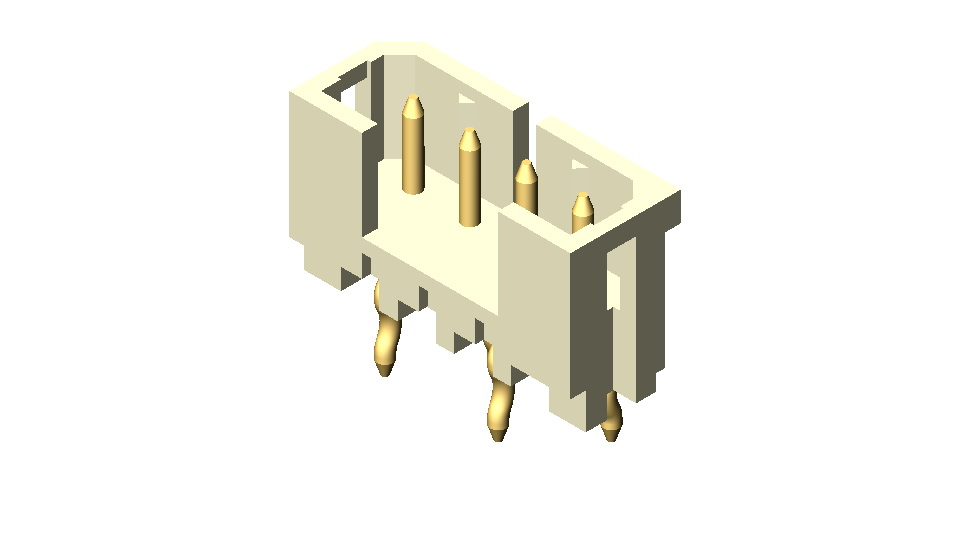

CI25 Series 2.50mm (.098) Straight Type Wite to Board Header
Catalogue item

CI25 Series 2.50mm (.098) Straight Type Wite to Board Header

• Rated Current and Voltage :3A, 50V AC(r.m.s) • Dielectric Withstanding Voltage : 1000V AC for one minute • Contact Resistance : ＜20mΩ • Insulation Resistance : ＞1000MΩ • Operating Temperature : -25℃~85℃ • RoHS Compliant

Generally high availability — ask for current lead time
Circuits
03, 04, 05 CIRCUTS
Product Drawings
<a href='/media/cvilux/cdi_pdf_277.pdf' style='color: rgb(255,0,0)' target='_blank'>Download CI2563S</a>
GWIT
0
Halogen Free
0
Lead Free
0
Location
CCT-TVL0079
Request a quoteCall usEmail

Additional information

Circuits03, 04, 05 CIRCUTS
Product DrawingsDownload CI2563S
GWIT0
Halogen Free0
Lead Free0
LocationCCT-TVL0079
Plating Code1= Matte Tin Plated over Nickel 4= Gold Flash Plated over 50μ” Nickel Download GENERAL PLATING-2 PDF
RoHS0
SpecificationDownload SPCI007
Test ReportDownload TEST-CI25 Download TVL0079I251
Tin-lead0
TUV0
UL0

Description

N/A
