Catalogue item

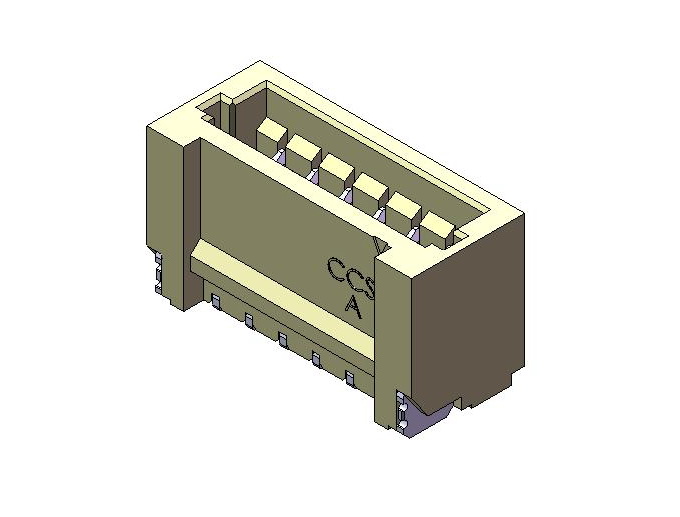

CI16 Serise 1.00mm(.039) Wire To Board SMT Top Entry Type Connector
• Rated Current and Voltage : 1.0A AC (r.m.s.)/DC(AWG#28)125V AC (r.m.s.)/DC • Dielectric Withstanding Voltage : 500 V AC for one minute • Contact Resistance : ＜20mΩ • Insulation Resistance : ＞100MΩ • Operating Temperature : -25℃~85℃ • RoHS Compliant • Lead Free Process • Halogen-Free
Generally high availability — ask for current lead time
Catalog-page
<a href='/media/cvilux/cdi_pdf_1561.pdf' style='color: rgb(255,0,0)' target='_blank'>Download P81 CI16-2</a>
Circuits
02 to 20 CIRCUTS
Product Drawings
<a href='/media/cvilux/cdi_pdf_269.pdf' style='color: rgb(255,0,0)' target='_blank'>Download CI1606S</a>
GWIT
0
Halogen Free
0
Lead Free
0
Additional information
| Catalog-page | Download P81 CI16-2 |
| Circuits | 02 to 20 CIRCUTS |
| Product Drawings | Download CI1606S |
| GWIT | 0 |
| Halogen Free | 0 |
| Lead Free | 0 |
| Location | HBC |
| Plating Code | 1= Matte Tin over Nickel Plated Download GENERAL PLATING-2 PDF |
| RoHS | 0 |
| Specification | Download SPCI117 |
| Test Report | Download CI16可靠度測試報告 |
| Tin-lead | 0 |
| TUV | 0 |
| UL | 0 |
Description
N/A
