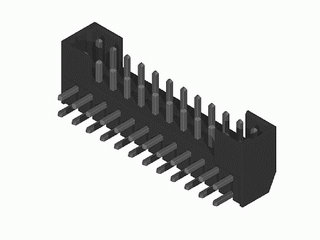

CHWG Series Dual Row Board Mount Pin Header
• Rated current and voltage : 1 A 250V AC(r.m.s) • Dielectric Withstanding Voltage : 600V AC for one minute • Contact Resistance : ＜20mΩ • Insulation Resistance : ＞1000MΩ • Operating Temperature : -40℃ ~ 105℃ • RoHS Compliant
Generally high availability — ask for current lead time
Circuits
16,24 CIRCUITS
Product Drawings
<a href='/media/cvilux/cdi_pdf_780.pdf' style='color: rgb(255,0,0)' target='_blank'>Download CHWG01S</a>
GWIT
0
Halogen Free
0
Lead Free
0
Location
CED
Additional information
| Circuits | 16,24 CIRCUITS |
| Product Drawings | Download CHWG01S |
| GWIT | 0 |
| Halogen Free | 0 |
| Lead Free | 0 |
| Location | CED |
| Plating Code | 2= Gold Flash Plated over 50μ” Nickel Download GENERAL PLATING-2 PDF |
| RoHS | 0 |
| Specification | Download SPCHWG1 |
| Test Report | Download CHWG SERIES Download CI15HWG1 |
| Tin-lead | 0 |
| TUV | 0 |
| UL | 0 |
Description
N/A
