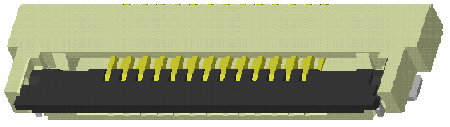

CF55 Series 0.50mm(.020”)H=1.25 SMT ZIF ONE-TOUCH FFC/FPC Connectors (Halogen Free)
Catalogue item

CF55 Series 0.50mm(.020”)H=1.25 SMT ZIF ONE-TOUCH FFC/FPC Connectors (Halogen Free)

• Rated Current and Voltage : 0.5Amp/50V AC/DC max. • Dielectric Withstanding Voltage : 500V AC for one minute • Contact Resistance : ＜80mΩ • Insulation Resistance : ＞500MΩ • Operating Temperature : -55℃~85℃ • RoHS Compliant • Lead Free Process

Generally high availability — ask for current lead time
Catalog-page
<a href='/media/cvilux/cdi_pdf_1318.pdf' style='color: rgb(255,0,0)' target='_blank'>Download P12 CF55</a>
Circuits
6 to 14(6,11,12) CIRCUTS
Product Drawings
<a href='/media/cvilux/cdi_pdf_177.pdf' style='color: rgb(255,0,0)' target='_blank'>Download CF5501S</a>
GWIT
0
Halogen Free
0
Lead Free
0
Request a quoteCall usEmail

Additional information

Catalog-pageDownload P12 CF55
Circuits6 to 14(6,11,12) CIRCUTS
Product DrawingsDownload CF5501S
GWIT0
Halogen Free0
Lead Free0
LocationCCT
Plating Code1= Matte Tin Plated over Nickel F= Selective Gold flash over Nickel Download General Plating PDF
RoHS0
SpecificationDownload SPCF076-(CF55)
Test ReportDownload Packing CF55包裝圖 Download Packing CI15F553 Download Packing CI15F554 Download Packing CI15F555
Tin-lead0
TUV0
UL0

Description

N/A
