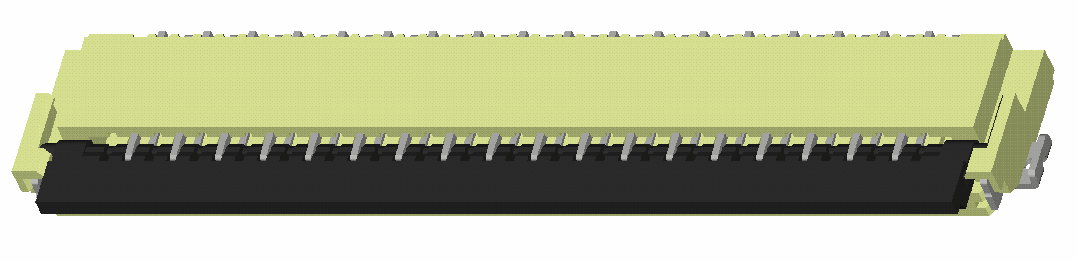

CF50 Series 1.00mm(.039”)H=1.46 SMT ZIF ONE-TOUCH FFC/FPC Connectors (Halogen Free)
Catalogue item

CF50 Series 1.00mm(.039”)H=1.46 SMT ZIF ONE-TOUCH FFC/FPC Connectors (Halogen Free)

• Rated Current and Voltage : 0.5Amp/50V AC/DC max. • Dielectric Withstanding Voltage : 500V AC for one minute • Contact Resistance : ＜60mΩ • Insulation Resistance : ＞1000MΩ • Operating Temperature : -40℃~85℃ • RoHS Compliant • Lead Free Process • Halogen Free

Generally high availability — ask for current lead time
Catalog-page
<a href='/media/cvilux/cdi_pdf_1346.pdf' style='color: rgb(255,0,0)' target='_blank'>Download P15 CF50-2</a>
Circuits
04 to30(4,6,8,14,18,26) CIRCUTS
Product Drawings
<a href='/media/cvilux/cdi_pdf_173.pdf' style='color: rgb(255,0,0)' target='_blank'>Download CF5001S</a>
GWIT
0
Halogen Free
0
Lead Free
0
Request a quoteCall usEmail

Additional information

Catalog-pageDownload P15 CF50-2
Circuits04 to30(4,6,8,14,18,26) CIRCUTS
Product DrawingsDownload CF5001S
GWIT0
Halogen Free0
Lead Free0
LocationHBC
Plating Code1= Matte Tin Plated over Nickel F= Selective Gold flash over Nickel Download General Plating PDF
RoHS0
SpecificationDownload SPCF070
Test ReportDownload Packing 包裝圖(1.0P) Download Packing CI15F502 Download Packing CI15F501
Tin-lead0
TUV0
UL0

Description

N/A
