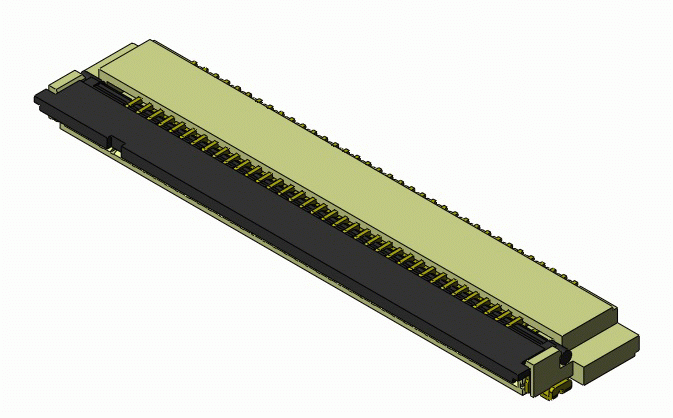

CF50 Series 0.5mm(.020")H=1.50 SMT ZIF One-Touch FFC/FPC Connectors
Catalogue item

CF50 Series 0.5mm(.020")H=1.50 SMT ZIF One-Touch FFC/FPC Connectors

• Rated Current and Voltage : 0.5Amp/50V AC/DC max. • Dielectric Withstanding Voltage : 500V AC for one minute • Contact Resistance : ＜60mΩ • Insulation Resistance : ＞1000MΩ • Operating Temperature : -40℃~85℃ • RoHS Compliant • Lead Free Process • Halogen Free

Generally high availability — ask for current lead time
Circuits
32 CIRCUTS
Product Drawings
<a href='/media/cvilux/cdi_pdf_175.pdf' style='color: rgb(255,0,0)' target='_blank'>Download CF5011S</a>
GWIT
0
Halogen Free
0
Lead Free
0
Location
HBC
Request a quoteCall usEmail

Additional information

Circuits32 CIRCUTS
Product DrawingsDownload CF5011S
GWIT0
Halogen Free0
Lead Free0
LocationHBC
Plating Code1= Matte Tin Plated over Nickel F= Selective Gold flash over Nickel Download General Plating PDF
RoHS0
SpecificationDownload SPCF070
Test ReportDownload Test Report
Tin-lead0
TUV0
UL0

Description

N/A
