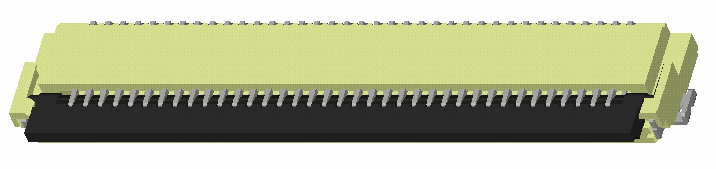

CF50 Series 0.50mm(.020”)H=1.46 SMT ZIF ONE-TOUCH FFC/FPC Connectors (Halogen Free)
Catalogue item

CF50 Series 0.50mm(.020”)H=1.46 SMT ZIF ONE-TOUCH FFC/FPC Connectors (Halogen Free)

• Rated Current and Voltage : 0.5Amp/50V AC/DC max. • Dielectric Withstanding Voltage : 500V AC for one minute • Contact Resistance : ＜60mΩ • Insulation Resistance : ＞1000MΩ • Operating Temperature : -40℃~85℃ • RoHS Compliant • Lead Free Process • Halogen Free

Generally high availability — ask for current lead time
Catalog-page
<a href='/media/cvilux/cdi_pdf_1336.pdf' style='color: rgb(255,0,0)' target='_blank'>Download P14 CF50-1</a>
Circuits
4 to 61(9,13,17,29,37,53) CIRCUTS
Product Drawings
<a href='/media/cvilux/cdi_pdf_174.pdf' style='color: rgb(255,0,0)' target='_blank'>Download CF5002S</a>
GWIT
0
Halogen Free
0
Lead Free
0
Request a quoteCall usEmail

Additional information

Catalog-pageDownload P14 CF50-1
Circuits4 to 61(9,13,17,29,37,53) CIRCUTS
Product DrawingsDownload CF5002S
GWIT0
Halogen Free0
Lead Free0
LocationHBC
Plating Code1= Matte Tin Plated over Nickel F= Selective Gold flash over Nickel Download General Plating PDF
RoHS0
SpecificationDownload SPCF070
Test ReportDownload Packing 包裝圖(0.5P) Download Packing CI15F501 Download Packing CI15F502
Tin-lead0
TUV0
UL0

Description

N/A
