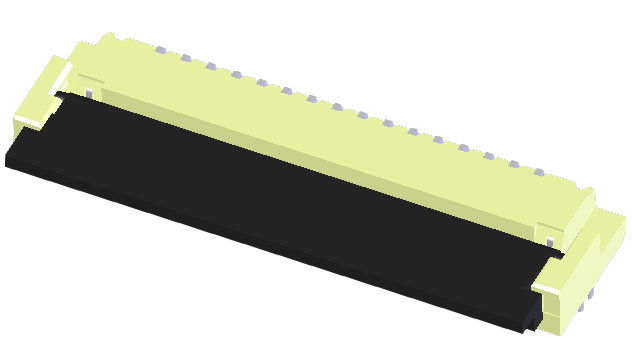

CF37 Series 0.80mm(.032”)H=1.95 SMT ZIF ONE-TOUCH FFC/FPC Connectors(Halogen Free)
Catalogue item

CF37 Series 0.80mm(.032”)H=1.95 SMT ZIF ONE-TOUCH FFC/FPC Connectors(Halogen Free)

• Rated Current and Voltage : 0.5Amp/50V AC/DC max. • Dielectric Withstanding Voltage : 500V AC for one minute • Contact Resistance : ＜40mΩ • Insulation Resistance : ＞500MΩ • Operating Temperature : -40℃~85℃ • RoHS Compliant • Halogen Free

Generally high availability — ask for current lead time
Catalog-page
<a href='/media/cvilux/cdi_pdf_1537.pdf' style='color: rgb(255,0,0)' target='_blank'>Download P40 CF37</a>
Circuits
04 to 30(4) CIRCUTS
Product Drawings
<a href='/media/cvilux/cdi_pdf_170.pdf' style='color: rgb(255,0,0)' target='_blank'>Download CF3701S</a>
GWIT
0
Halogen Free
0
Lead Free
0
Request a quoteCall usEmail

Additional information

Catalog-pageDownload P40 CF37
Circuits04 to 30(4) CIRCUTS
Product DrawingsDownload CF3701S
GWIT0
Halogen Free0
Lead Free0
LocationHBC
Plating Code1= Matte Tin Plated Over Nickel 2= Gold flash Plated Over Nickel Download General Plating PDF
RoHS0
SpecificationDownload SPCF060
Test ReportDownload Test Report Download Packing 包裝圖-1 Download Packing CI15F374
Tin-lead0
TUV0
UL0

Description

N/A
