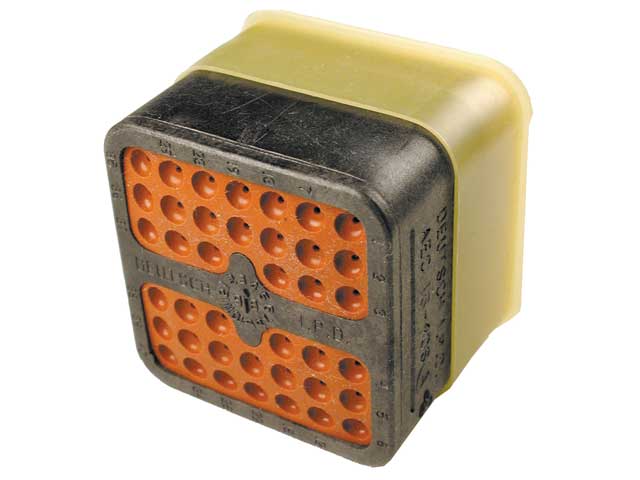

AEC16-40SAE-K001

Generally high availability — ask for current lead time
No. of cavities
40
Color
Black
Connector Style
Plug
Contact Size
16
Current Rating
13
Flange/In-line/PCB Mount
In-line
Request a quoteCall usEmail

Additional information

No. of cavities40
ColorBlack
Connector StylePlug
Contact Size16
Current Rating13
Flange/In-line/PCB MountIn-line
Holds Pin/SocketSocket
Insulation.053-.120 [1.35-3.05]
keyedYes, E seal
MaterialPlastic
ModificationRemove Blue Stripe and has Brown End
Seal SizeE seal
SeriesAEC Series
ShapeSquare
Wire Size14, 16, 18, 20

Contacts

0462-201-16141
0462-201-16141
0462-201-1631
0462-201-1631
1062-16-0122
1062-16-0122
1062-16-0144
1062-16-0144

Mating connectors

AEC14-40PA
AEC14-40PA

Accessories

0411-310-1605
0411-310-1605
0515-010-4005
0515-010-4005

Drawings

Customer View Model (PDF)3D_CVM_CVM_AEC16-40SAE-K001_A_c-aec16-40sae-k001-a-3d.pdfProduct Drawing (PDF)ENG_CD_AEC16-40SXE-K001_B.pdfCAD Files 2D Drawing (DXF Version 99 ZIP)ENG_CVM_CVM_AEC16-40SAE-K001_A_c-aec16-40sae-k001-a.2d_dxf.zipCAD Files 3D Model (IGES Version 99 ZIP)ENG_CVM_CVM_AEC16-40SAE-K001_A_c-aec16-40sae-k001-a.3d_igs.zipCAD Files 3D Model (STEP Version 99 ZIP)ENG_CVM_CVM_AEC16-40SAE-K001_A_c-aec16-40sae-k001-a.3d_stp.zip
