Catalogue item
817.60

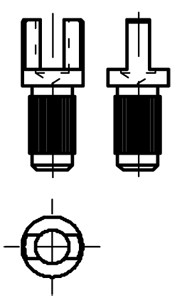

soldering lugs for PCB
Generally high availability — ask for current lead time
A
0.7
B
ø1.2
C
2
CAD Zeichnung
817.STEP
D
1.35
D1
1.8
Additional information
| A | 0.7 |
| B | ø1.2 |
| C | 2 |
| CAD Zeichnung | 817.STEP |
| D | 1.35 |
| D1 | 1.8 |
| Form | A |
| für Bohrung | 1.3 |
| H | 1.5 |
| L | 4.5 |
| Material | brass |
| N | 1 |
| Plating | clean |
| RoHS Conform | Y |
| T | 2.5 |
Description
soldering lugs for PCB
