Catalogue item
816.68

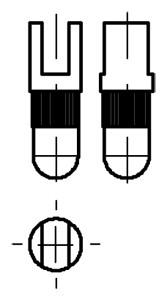

turned part
Generally high availability — ask for current lead time
B
ø1.3
C
1
CAD Zeichnung
816.STEP
D
1.33
D1
1.5
für Bohrung
1.3
Additional information
| B | ø1.3 |
| C | 1 |
| CAD Zeichnung | 816.STEP |
| D | 1.33 |
| D1 | 1.5 |
| für Bohrung | 1.3 |
| H | 1.5 |
| L | 4.5 |
| Material | brass |
| N | 0.8 |
| Plating | pure tin-plated |
| RoHS Conform | Y |
| T | 2.5 |
Description
turned part
