Deutsch, TE ConnectivityCatalogue item

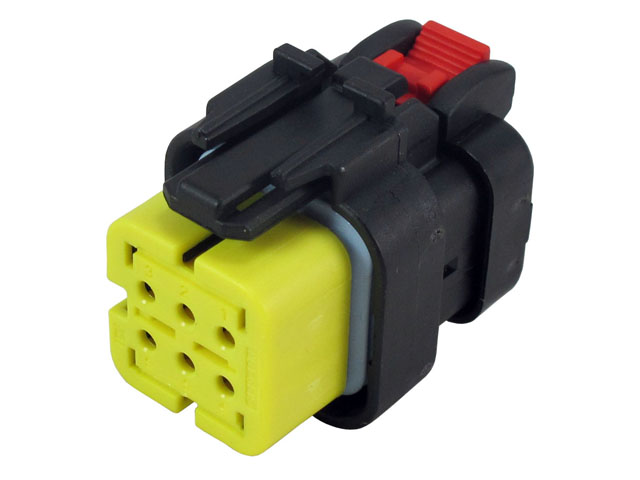

776531-3
Generally high availability — ask for current lead time
No. of cavities
6
Color
Black
Connector Style
Receptacle Contact Housing
Current Rating
Up to 13
Holds Pin/Receptacle Contact
Receptacle
Insulation
.051-.100 [1.30-2.54]
Additional information
| No. of cavities | 6 |
| Color | Black |
| Connector Style | Receptacle Contact Housing |
| Current Rating | Up to 13 |
| Holds Pin/Receptacle Contact | Receptacle |
| Insulation | .051-.100 [1.30-2.54] |
| keyed | Yes, C key |
| Material | Plastic |
| Series | AMPSEAL 16 Series |
| Shape | Rectangular |
| Special Features | Reduced Dia. Seals |
| TPA Color | Yellow |
| Wire Size | 14, 16, 18, 20 |

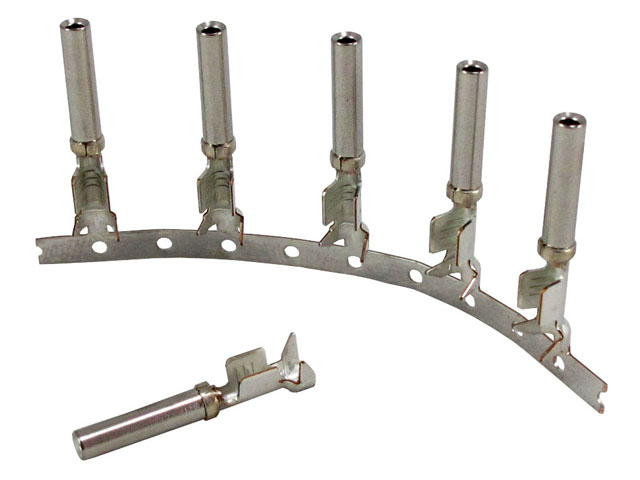

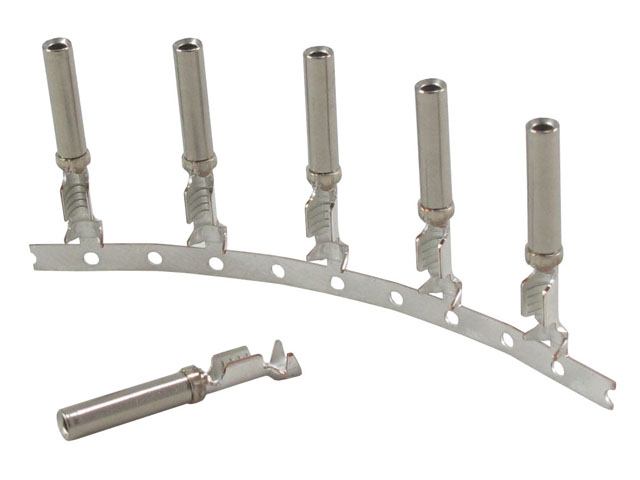

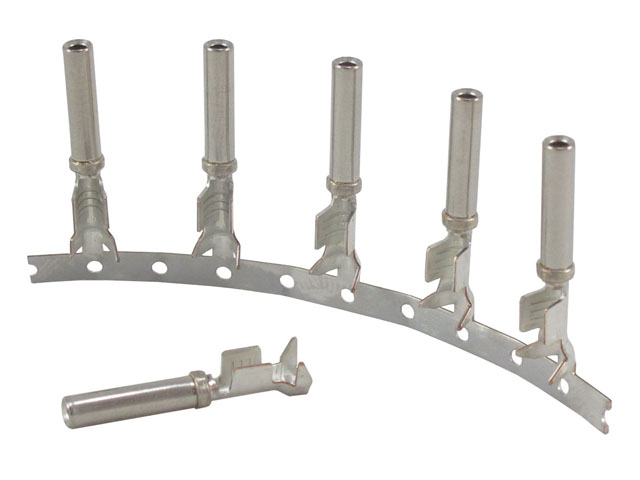

Contacts

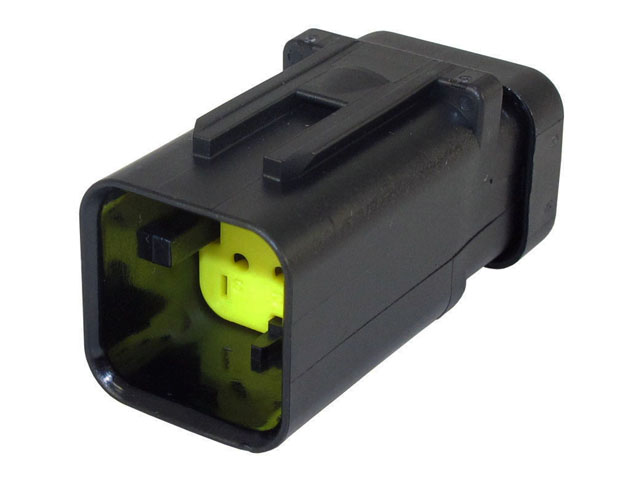

Mating connectors
Required components
TPA Included

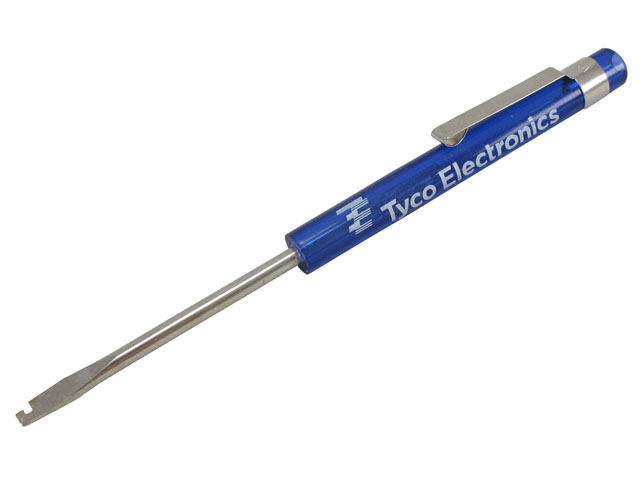

Accessories
Drawings
Customer View Model (PDF)3D_CVM_CVM_776531-3_E_c-776531-3-e-3d.pdfProduct Drawing (PDF)ENG_CD_776531_D_776531_c_drw.pdfCAD Files 2D Drawing (DXF Version 99 ZIP)ENG_CVM_CVM_776531-3_E_c-776531-3-e.2d_dxf.zipCAD Files 3D Model (IGES Version 99 ZIP)ENG_CVM_CVM_776531-3_E_c-776531-3-e.3d_igs.zipCAD Files 3D Model (STEP Version 99 ZIP)ENG_CVM_CVM_776531-3_E_c-776531-3-e.3d_stp.zip
