Deutsch, TE ConnectivityCatalogue item

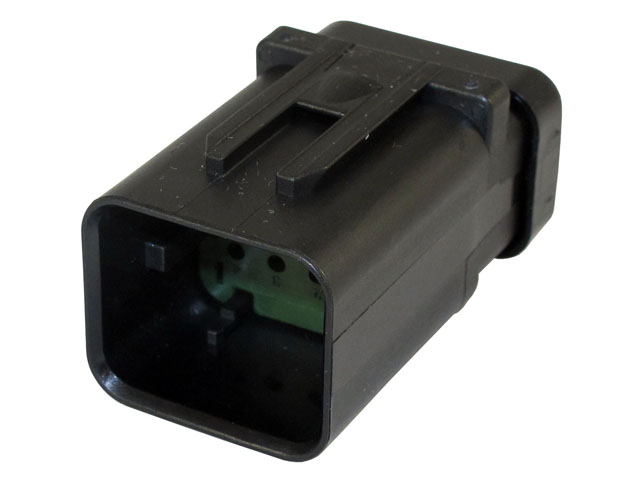

776495-4
Generally high availability — ask for current lead time
No. of cavities
8
Color
Black
Connector Style
Pin Contact Housing
Current Rating
Up to 13
Holds Pin/Receptacle Contact
Pin
Insulation
.086-.144 [2.18-3.67]
Additional information
| No. of cavities | 8 |
| Color | Black |
| Connector Style | Pin Contact Housing |
| Current Rating | Up to 13 |
| Holds Pin/Receptacle Contact | Pin |
| Insulation | .086-.144 [2.18-3.67] |
| keyed | Yes, D key |
| Material | Plastic |
| Series | AMPSEAL 16 Series |
| Shape | Rectangular |
| TPA Color | Green |
| Wire Size | 14, 16, 18, 20 |
Contacts
Mating connectors
Required components
TPA Included
Accessories
Drawings
Customer View Model (PDF)3D_CVM_CVM_776495-4_D_c-776495-4-d-3d.pdfProduct Drawing (PDF)ENG_CD_776495_D_776495_c_drw.pdfCAD Files 2D Drawing (DXF Version 99 ZIP)ENG_CVM_CVM_776495-4_D_c-776495-4-d.2d_dxf.zipCAD Files 3D Model (IGES Version 99 ZIP)ENG_CVM_CVM_776495-4_D_c-776495-4-d.3d_igs.zipCAD Files 3D Model (STEP Version 99 ZIP)ENG_CVM_CVM_776495-4_D_c-776495-4-d.3d_stp.zip
About the manufacturer
DEUTSCHDEUTSCH is TE Connectivity's family of sealed connectors, the global benchmark for harsh-environment electrical connections. The DT, DTM, DTP, and AT series are specified in agriculture, construction, military, marine, and heavy automotive applications where vibration, moisture, and contamination resistance are critical.
