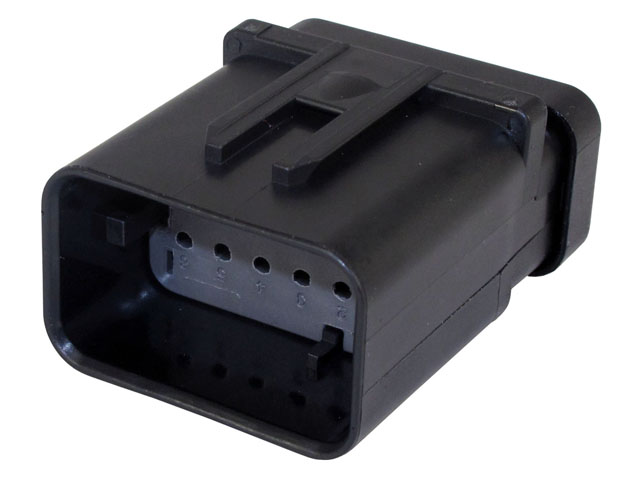

776438-2
Generally high availability — ask for current lead time
No. of cavities
12
Color
Black
Connector Style
Pin Contact Housing
Current Rating
Up to 13
Holds Pin/Receptacle Contact
Pin
Insulation
.086-.144 [2.18-3.67]
Additional information
| No. of cavities | 12 |
| Color | Black |
| Connector Style | Pin Contact Housing |
| Current Rating | Up to 13 |
| Holds Pin/Receptacle Contact | Pin |
| Insulation | .086-.144 [2.18-3.67] |
| keyed | Yes, B key |
| Material | Plastic |
| Series | AMPSEAL 16 Series |
| Shape | Rectangular |
| TPA Color | Gray |
| Wire Size | 14, 16, 18, 20 |
