Deutsch, TE ConnectivityCatalogue item

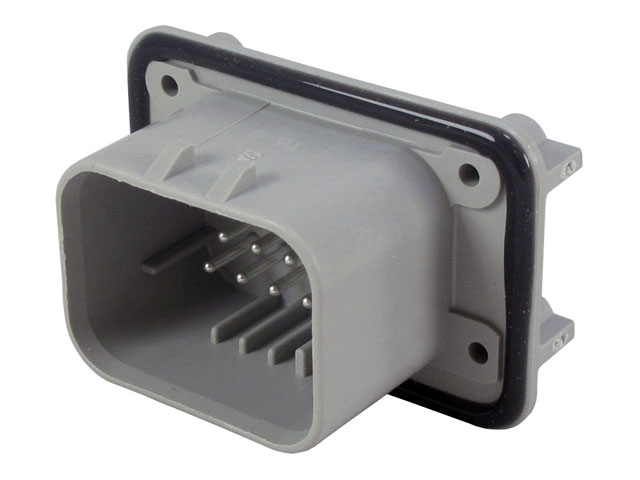

776267-4
Generally high availability — ask for current lead time
No. of cavities
14
Color
Gray
Connector Style
PCB Header
Current Rating
Up to 8
Flange/In-line/PCB Mount
PCB
keyed
Yes
Additional information
| No. of cavities | 14 |
| Color | Gray |
| Connector Style | PCB Header |
| Current Rating | Up to 8 |
| Flange/In-line/PCB Mount | PCB |
| keyed | Yes |
| Material | Plastic |
| Series | AMPSEAL Series |
| Shape | Rectangular |
| Special Features | 90 degrees molded tin pins, with flange seal |
Mating connectors
Drawings
Customer View Model (PDF)3D_CVM_CVM_776267-4_C.pdfProduct Drawing (PDF)ENG_CD_776267_B5_pdf_776267-c_drw.pdfCAD Files 2D Drawing (DXF Version 99 ZIP)ENG_CVM_CVM_776267-4_C.2d_dxf.zipCAD Files 3D Model (IGES Version 99 ZIP)ENG_CVM_CVM_776267-4_C.3d_igs.zipCAD Files 3D Model (STEP Version 99 ZIP)ENG_CVM_CVM_776267-4_C.3d_stp.zip
About the manufacturer
DEUTSCHDEUTSCH is TE Connectivity's family of sealed connectors, the global benchmark for harsh-environment electrical connections. The DT, DTM, DTP, and AT series are specified in agriculture, construction, military, marine, and heavy automotive applications where vibration, moisture, and contamination resistance are critical.
