Catalogue item
751.60

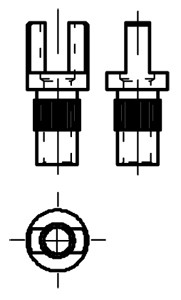

soldering lugs for PCB
Generally high availability — ask for current lead time
A
0.7
B
ø1.2
C
1.2
CAD Zeichnung
751.STEP
D
1.35
D1
1.8
Additional information
| A | 0.7 |
| B | ø1.2 |
| C | 1.2 |
| CAD Zeichnung | 751.STEP |
| D | 1.35 |
| D1 | 1.8 |
| D2 | 1.8 |
| E | ø0.8 |
| Form | C |
| für Bohrung | 1.3 |
| H | 1.5 |
| L | 4.2 |
| Material | brass |
| N | 0.8 |
| Plating | clean |
| RoHS Conform | Y |
| T | 2.2 |
| Werkzuege | 76b |
Description
soldering lugs for PCB
