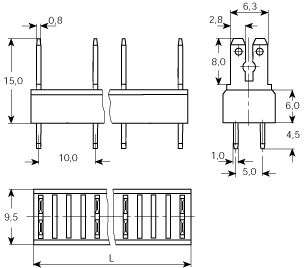

Catalogue item
3866508
tab blocs
Generally high availability — ask for current lead time
Anzahl Kontakte
8
L
73.5
RoHS Conform
Y
Werkstoffe
Insulator body polyamid (UL)<BR>Contacts tin-plated brass<BR>Maximum current 8A/250V Sleeves 2,8mm<BR>16A/250V Sleeves 6,3mm<BR>Temperature range -40°C up to +110°C
Additional information
| Anzahl Kontakte | 8 |
| L | 73.5 |
| RoHS Conform | Y |
| Werkstoffe | Insulator body polyamid (UL) Contacts tin-plated brass Maximum current 8A/250V Sleeves 2,8mm 16A/250V Sleeves 6,3mm Temperature range -40°C up to +110°C |
Description
tab blocs
