Catalogue item
3826a.20

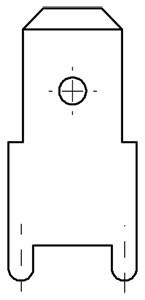

P.C.B.mounting tabs
Generally high availability — ask for current lead time
A
5
B
1.2
B1
6.2
B2
4.8
CAD Zeichnung
3826a.STEP
D
1.3
Additional information
| A | 5 |
| B | 1.2 |
| B1 | 6.2 |
| B2 | 4.8 |
| CAD Zeichnung | 3826a.STEP |
| D | 1.3 |
| für Bohrung | 1.3 |
| L | 6.5 |
| Material | bronze |
| Plating | clean |
| RoHS Conform | Y |
| S | 0.8 |
| T | 1.7 |
| Werkzuege | 22 |
Description
P.C.B.mounting tabs
