Additional Info
Additional Info
| Material | copper |
|---|---|
| Plating | pure tin-plated |
| UL-No | E235797 |
| RoHS Conform | Y |

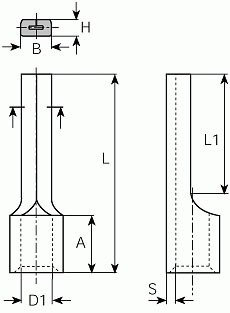

| A | 10 |
| AWG | 6 |
| B | 5.5 |
| CAD Zeichnung | E235797 |
| D1 | 5.8 |
| DIN | 16 |
| H | 2.6 |
| L | 26 |
| Querschnitt | 16 |
| S | 1.2 |
-
