Deutsch, TE ConnectivityCatalogue item

2138846-2

Generally high availability — ask for current lead time
Color
Brown
Connector Style
Pin Contact Housing
Flange/In-line/PCB Mount
Flange
Holds Pin/Receptacle Contact
Pin
Insulation
(#12).111-.161 [2.82-4.09], (#16).066-.109 [1.68-2.77]
keyed
Yes
Request a quoteCall usEmail

Additional information

ColorBrown
Connector StylePin Contact Housing
Flange/In-line/PCB MountFlange
Holds Pin/Receptacle ContactPin
Insulation(#12).111-.161 [2.82-4.09], (#16).066-.109 [1.68-2.77]
keyedYes
MaterialPlastic
SeriesAMPSEAL 16 Series
ShapeRectangular
Wire Size10, 12, 14, 16, 18, 20

Contacts

0460-202-16141
0460-202-16141
0460-202-1631
0460-202-1631
0460-204-12141
0460-204-12141

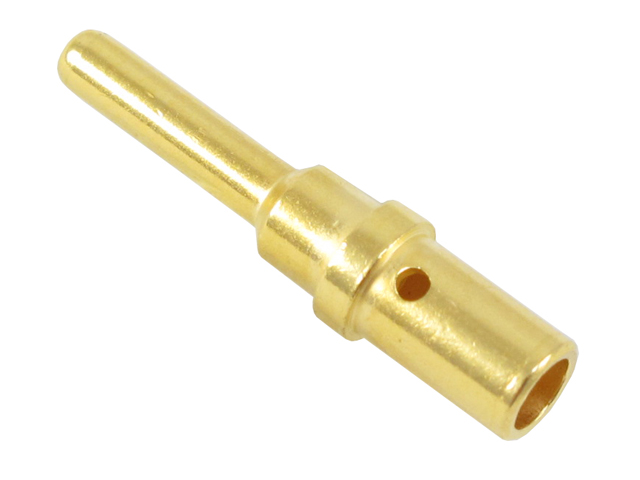

0460-220-1231
0460-220-1231

Mating connectors

2138839-2

Accessories

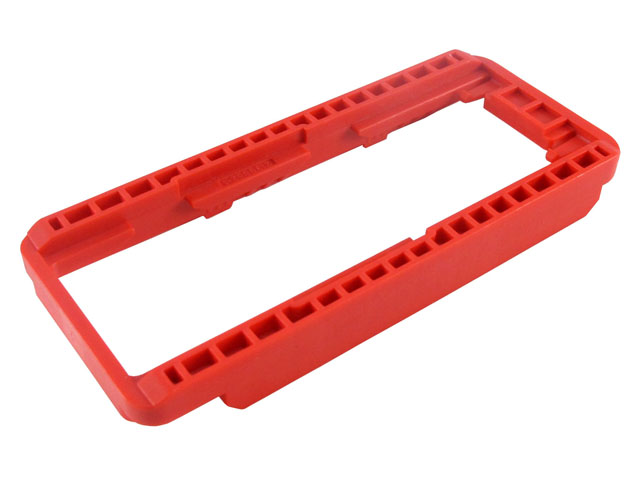

2138852-1
2138852-1
2138852-2
2138852-3

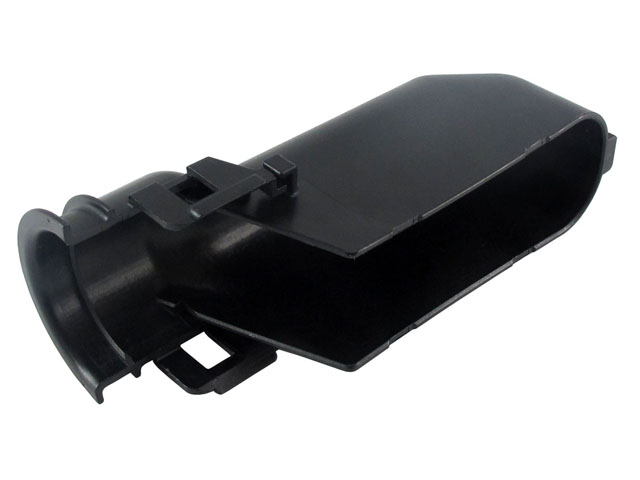

2138853-1
2138853-1

Drawings

Customer View Model (PDF)3D_CVM_CVM_2138846-2_A_c-2138846-2-a-3d.pdfProduct Drawing (PDF)ENG_CD_2138846_B.pdfCAD Files 2D Drawing (DXF Version 99 ZIP)ENG_CVM_CVM_2138846-2_A_c-2138846-2-a.2d_dxf.zipCAD Files 3D Model (IGES Version 99 ZIP)ENG_CVM_CVM_2138846-2_A_c-2138846-2-a.3d_igs.zipCAD Files 3D Model (STEP Version 99 ZIP)ENG_CVM_CVM_2138846-2_A_c-2138846-2-a.3d_stp.zipCustomer View Model (PDF)3D_CVM_CVM_2138846-2_A_c-2138846-2-a-3d.pdfProduct Drawing (PDF)ENG_CD_2138846_B.pdf
