DeutschCatalogue item

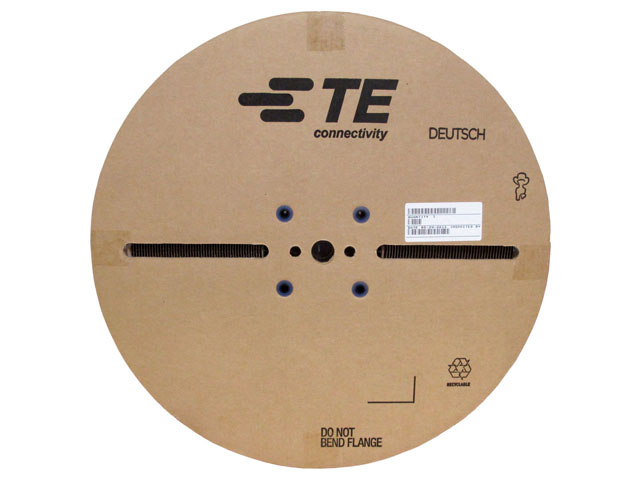

1062-20-0322
Generally high availability — ask for current lead time
Contact Size
20
Current Rating
7.5
Holds Pin/Socket
Socket
Insulation
.075-.125 [1.91-3.18]
keyed
No
Material
Nickel
Additional information
| Contact Size | 20 |
| Current Rating | 7.5 |
| Holds Pin/Socket | Socket |
| Insulation | .075-.125 [1.91-3.18] |
| keyed | No |
| Material | Nickel |
| Series | HD30 Series, HDP20 Series, DRC Series, DTM Series, DRB Series, STRIKE Series |
| Solid/Stamped & Formed | Stamped & Formed |
| Special Features | Reel, sleeveless |
| Wire Size | 16, 18, 20, 22 |
Drawings
Customer View Model (PDF)3D_CVM_CVM_1062-20-0322_99_c-1062-20-0322-99-3d.pdfProduct Drawing (PDF)ENG_CD_1062-20-03XX_E.pdfProduct Drawing (TIF)ENG_CD_1062-20-03XX_E.tifCAD Files 2D Drawing (DXF Version 99 ZIP)ENG_CVM_CVM_1062-20-0322_99_c-1062-20-0322-99.2d_dxf.zipCAD Files 3D Model (IGES Version 99 ZIP)ENG_CVM_CVM_1062-20-0322_99_c-1062-20-0322-99.3d_igs.zipCAD Files 3D Model (STEP Version 99 ZIP)ENG_CVM_CVM_1062-20-0322_99_c-1062-20-0322-99.3d_stp.zip
About the manufacturer
DEUTSCHDEUTSCH is TE Connectivity's family of sealed connectors, the global benchmark for harsh-environment electrical connections. The DT, DTM, DTP, and AT series are specified in agriculture, construction, military, marine, and heavy automotive applications where vibration, moisture, and contamination resistance are critical.
