DeutschCatalogue item
1062-12-0222
Generally high availability — ask for current lead time
Contact Size
12
Current Rating
25
Holds Pin/Socket
Socket
Insulation
.140-.204 [3.56-5.18]
keyed
No
Material
Nickel
Additional information
| Contact Size | 12 |
| Current Rating | 25 |
| Holds Pin/Socket | Socket |
| Insulation | .140-.204 [3.56-5.18] |
| keyed | No |
| Material | Nickel |
| Series | HD30 Series, HDP20 Series, DRC Series, HD10 Series, DTP Series, DTHD Series, DRB Series, Jiffy Splice |
| Solid/Stamped & Formed | Stamped & Formed |

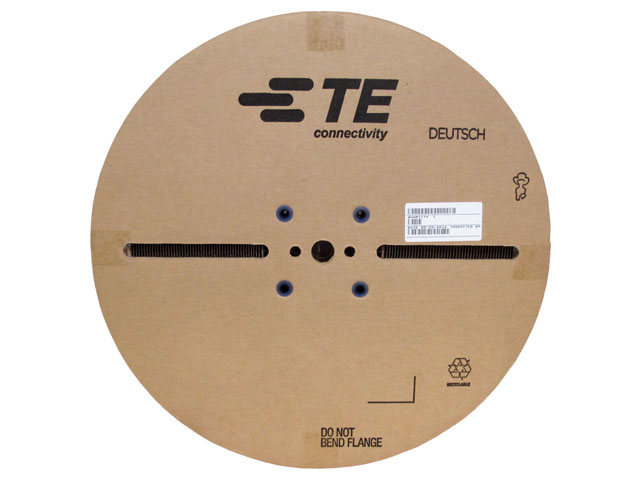

| Special Features | Reel |
| Wire Size | 10 |
Drawings
Customer View Model (PDF)3D_CVM_CVM_1062-12-0222_99_c-1062-12-0222-99-3d.pdfProduct Drawing (PDF)ENG_CD_1062-12-02XX_D.pdfProduct Drawing (TIF)ENG_CD_1062-12-02XX_D.tifCAD Files 2D Drawing (DXF Version 99 ZIP)ENG_CVM_CVM_1062-12-0222_99_c-1062-12-0222-99.2d_dxf.zipCAD Files 3D Model (IGES Version 99 ZIP)ENG_CVM_CVM_1062-12-0222_99_c-1062-12-0222-99.3d_igs.zipCAD Files 3D Model (STEP Version 99 ZIP)ENG_CVM_CVM_1062-12-0222_99_c-1062-12-0222-99.3d_stp.zip
About the manufacturer
DEUTSCHDEUTSCH is TE Connectivity's family of sealed connectors, the global benchmark for harsh-environment electrical connections. The DT, DTM, DTP, and AT series are specified in agriculture, construction, military, marine, and heavy automotive applications where vibration, moisture, and contamination resistance are critical.
