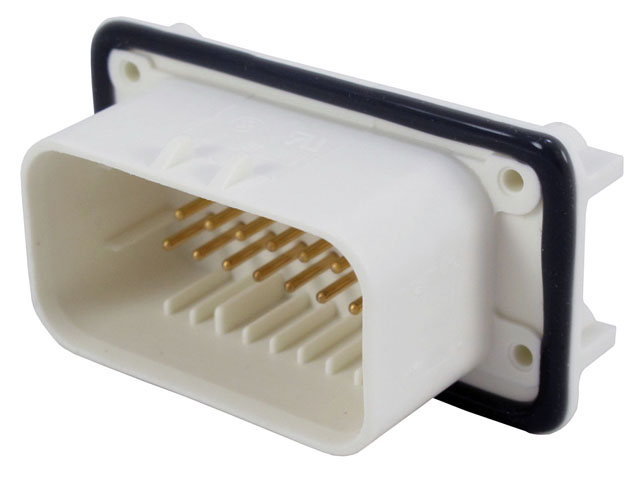

1-776087-2
Deutsch, TE ConnectivityCatalogue item

1-776087-2

Generally high availability — ask for current lead time
Color
Natural
Connector Style
PCB Header
Current Rating
Up to 17
Flange/In-line/PCB Mount
PCB
keyed
Yes
Material
Plastic
Request a quoteCall usEmail

Additional information

ColorNatural
Connector StylePCB Header
Current RatingUp to 17
Flange/In-line/PCB MountPCB
keyedYes
MaterialPlastic
SeriesAMPSEAL Series
ShapeRectangular
Special Features90 degrees molded gold pins, with flange seal

Mating connectors

770680-2
770680-2

Drawings

Customer View Model (PDF)3D_CVM_CVM_1-776087-2_L.pdfProduct Drawing (PDF)ENG_CD_776087_E8_776087_c_drw.pdfCAD Files 2D Drawing (DXF Version 99 ZIP)ENG_CVM_CVM_1-776087-2_L.2d_dxf.zipCAD Files 3D Model (IGES Version 99 ZIP)ENG_CVM_CVM_1-776087-2_L.3d_igs.zipCAD Files 3D Model (STEP Version 99 ZIP)ENG_CVM_CVM_1-776087-2_L.3d_stp.zip

About the manufacturer

DEUTSCH

DEUTSCH is TE Connectivity's family of sealed connectors, the global benchmark for harsh-environment electrical connections. The DT, DTM, DTP, and AT series are specified in agriculture, construction, military, marine, and heavy automotive applications where vibration, moisture, and contamination resistance are critical.
