DeutschCatalogue item

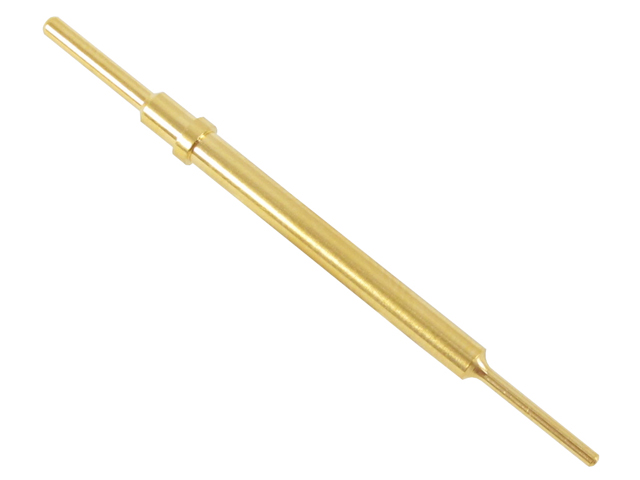

0460-244-1631
Generally high availability — ask for current lead time
Contact Size
16
Current Rating
13
Holds Pin/Socket
Pin
keyed
No
Material
Gold
Series
HD30 Series, HDP20 Series, DRC Series, HD10 Series, DT Series, DRB Series, DTV Series, AEC Series, STRIKE Series, Jiffy Splice
Additional information
| Contact Size | 16 |
| Current Rating | 13 |
| Holds Pin/Socket | Pin |
| keyed | No |
| Material | Gold |
| Series | HD30 Series, HDP20 Series, DRC Series, HD10 Series, DT Series, DRB Series, DTV Series, AEC Series, STRIKE Series, Jiffy Splice |
| Solid/Stamped & Formed | Solid |
| Special Features | Extended PCB (see Deutsch drawing 0425-202-0000) |
Drawings
Customer View Model (PDF)3D_CVM_CVM_0460-244-1631_99_c-0460-244-1631-99-3d.pdfProduct Drawing (PDF)ENG_CD_0460-244-16XX_-.pdfProduct Drawing (TIF)ENG_CD_0460-244-16XX_-.tifCAD Files 2D Drawing (DXF Version 99 ZIP)ENG_CVM_CVM_0460-244-1631_99_c-0460-244-1631-99.2d_dxf.zipCAD Files 3D Model (IGES Version 99 ZIP)ENG_CVM_CVM_0460-244-1631_99_c-0460-244-1631-99.3d_igs.zipCAD Files 3D Model (STEP Version 99 ZIP)ENG_CVM_CVM_0460-244-1631_99_c-0460-244-1631-99.3d_stp.zip
About the manufacturer
DEUTSCHDEUTSCH is TE Connectivity's family of sealed connectors, the global benchmark for harsh-environment electrical connections. The DT, DTM, DTP, and AT series are specified in agriculture, construction, military, marine, and heavy automotive applications where vibration, moisture, and contamination resistance are critical.
