Catalogue item

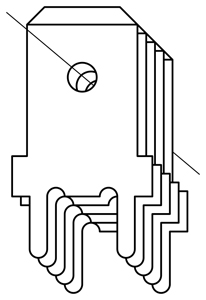

03866z.68

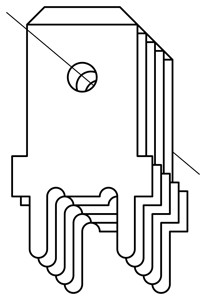

P.C.B.mounting tabs
Generally high availability — ask for current lead time
A
5
B
1
B1
8
B2
6.3
CAD Zeichnung
3866z.STEP
D
1.65
Additional information
| A | 5 |
| B | 1 |
| B1 | 8 |
| B2 | 6.3 |
| CAD Zeichnung | 3866z.STEP |
| D | 1.65 |
| für Bohrung | 1.1 |
| L | 8.5 |
| Material | brass |
| Plating | pure tin-plated |
| RoHS Conform | Y |
| S | 0.8 |
| T | 3.5 |
| Werkzuege | 1046z |
Description
P.C.B.mounting tabs
