Catalogue item
03785l08.68

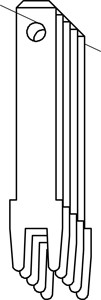

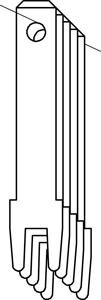

P.C.B.mounting tabs
Generally high availability — ask for current lead time
A
2.5
B
1.1
B1
3.7
B2
2.8
CAD Zeichnung
3785l08.STEP
D
1.2
Additional information
| A | 2.5 |
| B | 1.1 |
| B1 | 3.7 |
| B2 | 2.8 |
| CAD Zeichnung | 3785l08.STEP |
| D | 1.2 |
| für Bohrung | 1.2 |
| L | 14 |
| Material | brass |
| Plating | pure tin-plated |
| RoHS Conform | Y |
| S | 0.8 |
| T | 3 |
| Werkzuege | 1051l |
Description
P.C.B.mounting tabs
