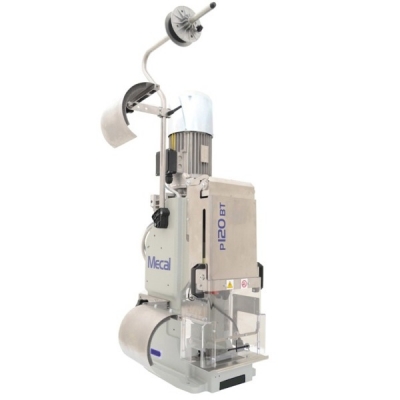

Mecal Press P120

The P120 Crimping Press is available either in semi-automatic (for bench-top use BT) configuration or in full automatic (integrated into a cut and strip machine) configuration.

It can be coupled to all mini-applicators and applicators with the standard T-coupling and to all Two-Post Crimping Dies with a 20mm-diameter coupling shank

Availability: Estimated delivery time 2-3 weeks

1

Additional Info

Additional Info

Country of Manufacture
Crimping equipment Brands Mecal
Type of press Electromech
Page Layout No layout updates

Mating Connectors

this product has no mating connectors products

Required Components

this product has no mating Required components products

Accessories

this product has no accessories products

Description

Details

Technical Specifications
  • ID: P120
  • Power: 4.2KW (5.5 HP)
  • Force: 12000Kg (26600lb)
  • Stroke: 30mm (1.18”) / 32mm (1.26”) / 32mm (1.26”) / 35mm (1.38”) / 40mm (1.57”) / 50mm (1.97”) / 60mm (2.36”)
  • Shut Height: 135.8mm (5.34”) applicators, 212mm (8.34”) two post dies
  • Weight: 178Kg (392lb))
  • Dimension (mm): W380mm x H1100mm x D420mm
  • Dimension ("): W14.9” x H43.3” x D16.5”
  • Configuration: Benchtop / Automatic
  • Power Supply: Man 3F / Auto 3F
  • Voltage: 400V / 230V / 480V
  • Surface Finishing: Light grey RAL7038


The standard variable stroke can be adjusted either to 40 or 50mm, with other strokes available upon request.
Fitted with a self-braking electric motor, the P120 is normally delivered with a 135.8mm ± 0.02mm crimping height (measured from the applicator base plate to the press T-coupling when at Bottom Dead Center),
but the operator can set the crimping height at 212mm with simple tools and an adapting kit (shank coupling) supplied with the press.
Optional safety optical barriers allow the operator to load loose terminals directly over the anvil.
Mecal’s own CFA Crimp Force Analyser can be fitted as an option.
The semi-automatic configuration (for bench top use) always includes safety cover, reel arm, foot switch according to the international safety standard and CE regulation.
