Mecal Restyling

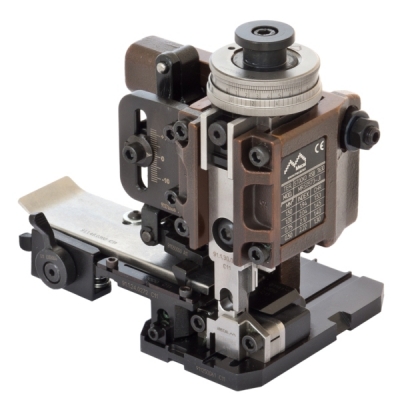

The Restyling mechanical-feed applicator crimps on-reel terminals over wires of different sections.

Availability: Estimated delivery time 2-3 weeks

1

Additional Info

Additional Info

Country of Manufacture
Crimping equipment Brands Mecal
Type of press Electromech
Page Layout No layout updates

Mating Connectors

this product has no mating connectors products

Required Components

this product has no mating Required components products

Accessories

this product has no accessories products

Description

Details

Technical Specifications
  • ID: MRS
  • Crimping Height: 135,8mm (5,346")
  • Stroke: 40/30mm (1,575/1,18")
  • Terminal Pitch: < 27 mm (<1,06")
  • Terminal Thickness: < 1,2mm (<0,047")
  • Wire Section: Max 10mm²
  • Feeding System: Mechanical
  • Weight: 3,9 Kg (8,6 lb)
  • Dimension mm: W144xH145,5xD105
  • Dimension ("): 5,66"x5,72"x4,13"
  • Option: Continuous regulating head / 0,01mm(0,00039") resolution / 2,7mm(0,106") range


Its newly conceive cast iron body grants great accessibility and easy adjustments, the replacement of the perishables is facilitated by having them bolted to the front of the tool.
The applicator's non-resettable 7-digit cycle counter facilitates the perishables lifetime evaluation, and two different feeding cams are supplied - for manual (terminal already on the anvil) or automatic (terminal not yet on the anvil) set up.
The Restyling can be ordered either in side-feed (MRS) or end-feed (MRF) configuration, either with the H adjusting head (AMP-style 4-pad) or the J continuous adjusting head (0.01mm resolution, 2.7mm range). Special RSJ, RFJ, RSY and RFY configurations - fitted with adjusting head & fixing baseplate specifically engineered - are available to be fitted to presses with different shut-height, such as Toyojamco JAM (121,00mm) and Yazaki (190,00mm).
Each applicator comes with a complete Data Sheet on a CD showing all the parameters & adjustments used during the final test, together with an exploded view of the tool and the part number of each component; the same datas can be found in the Customer Area of Mecal's website.
