Country of Manufacture | |
---|---|
Crimping equipment Brands | Mecal |
Type of press | Electromech |
Page Layout | No layout updates |
Mating Connectors
Required Components
Accessories
Description
Details
Technical Specifications

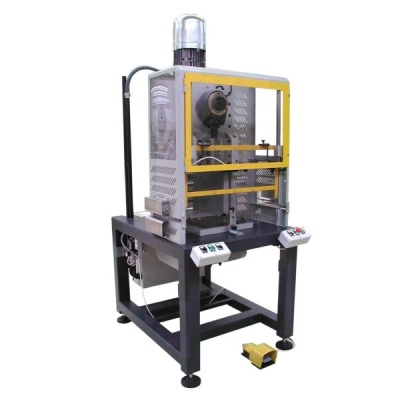

- ID: P200
- Power: 7,8KW (10,5HP)
- Force: 25000Kg (55100lb)
- Stroke: 50mm (1,96")
- Crimping height: 190mm (7,48")
- Weight: 1550Kg (3410lb)
- Dimension (mm): W900xH2600xD1400
- Dimension ("): (35,43"x102,36"x22,11")
- Configuration: Manual
- Power Supply: 380/400 Vac - 3P + PE
- Voltage: 400V / 230V / 480V
- Surface Finishing: Light grey RAL 7038
Designed to accept Extreme Duty Two-Post Die MSCS, with the specific adapting shank can also receive Two-Post Dies MSA.
With the press ram at Bottom Dead Center, the P200 has a crimping height of 190 mm.
The P200 Crimping Press has a regulating head PN 951270110, which allows for a continuous setting of the crimping height, with a 0.1mm resolution and a 5.8mm range.
It is fitted with a 360° safety cover, the only open side of which is protected by a set of optical barriers.
As an alternative, the open side can be protected by an air operated moving cover.
All the controls, including the one allowing a step-by-step cycling of the press, are placed on two external control boxes.
Produced under a quality Management System certified to ISO 9001 (TÜV).
